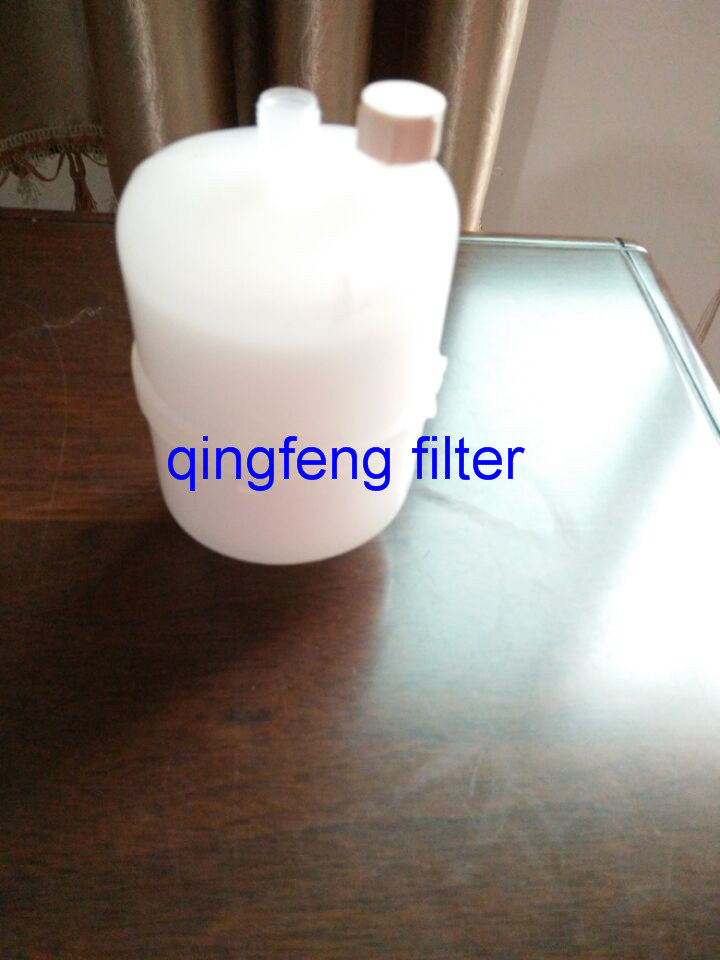

1um PP Media Ink Cartridge for Filter Housing
Basic Info
Model No.: PP Capsule Filter
Product Description
1.PP Capsule Filter is Small, light, and easy to connect
2,Capsule Filter is Economical to filter and less waste
3,Good compatibility, safe and economic to disposal
4,Minimal hold up volume of fluids ensures minimum wastage
5,No binders, glues or mold release agents are employed
Disposable Capsule Filters Specifications & Technical data:
Material of Construction
Medium: PES/Nylon66/PTFE/PP/GF/PVDF Micropore Filter Membrane.
Support & Housing: PP
Removal Rating: Please refer to Ordering Information as attached.
Configurations: Nominal Length: 2.5"/112mm; 5"/196mm
Diameter: ODΦ67
Fittings: Inlet/Outlet: 1/2"NPT ,1/4"SW; Vent/ Drain: 1/4"SW
Effective Filter Areas: 2.5" ≥0.14m2
Sealing Quality:
Capsule filters are manufactured to a very high standard of quality assurance and cleanliness. Manufactured in accordance to ISO 9001:2000
Operating Conditions:
• Maximum Temperature:140°F/60°C
• Maximum Forward Differential Pressure :0.42Mpa
• Maximum Reverse Differential Pressure :0.21Mpa
Typical Applications:
1,Chemicals
2,Solvents
3,Coatings
4,Pigment
5,Oil
6,Photoresist
7,Small volume previous chemicals
| Materials of Construction | |
| Filter Media | PES/Nylon66/PTFE/PP/GF/PVDF |
| Support & Housing | PP |
| Sealing technology | Thermal Bonding, No Adhesives |
| Filtration Area, ft 2 | |
| ≥ 2.2 | |
| Pore Size, μm | |
| Please refer to Ordering Information. | |
| Maximum Differential Pressure | |
| Forward: 3.5 bar @ 23°C and 3.0 bar @ 60°C for liquid; 3.0 bar @ 23°Cand 2.5 bar @ 60°C for gas & air. | |
| Sterilization | |
| 3 autoclave cycles of 30 min at 123 °C; steam-in-place sterilization not recommendable. | |
| | |
Company Profile:
QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in industrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
Contact us if you need more details on Capsule Filters Millipore. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Capsule Air Filter、PP Media Filter. If these products fail to match your need, please contact us and we would like to provide relevant information.
